We cover practically all combinations of ratios, burdens, accuracy classes and voltages up to 36Kv and as per IS 16277-3&IEC 61869-3.

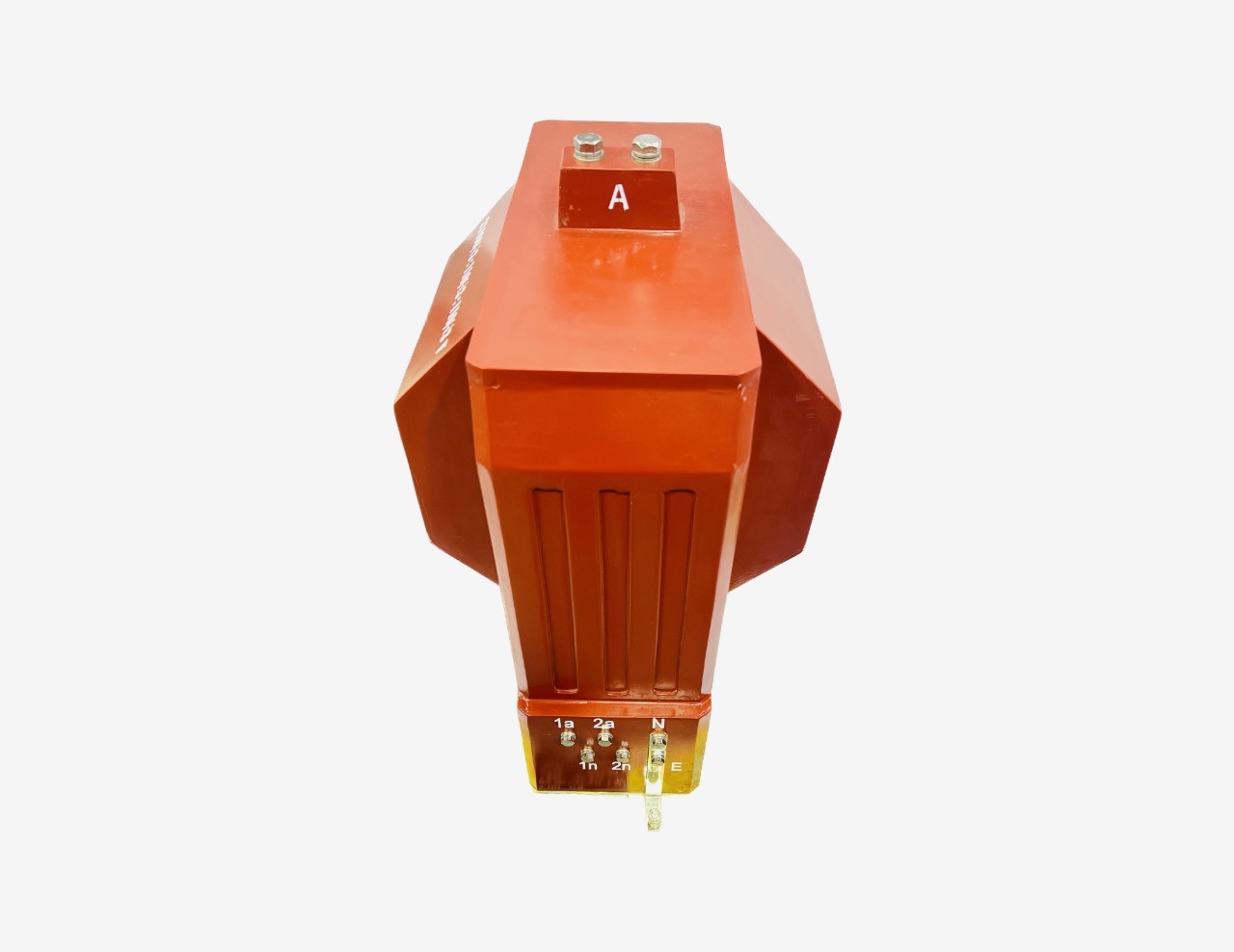

11 Kv Cast Epoxy Voltage Transformers

We are among the leading manufacturer, supplier and service provider of best range of 11KV VT. We offer our clients these transformers are made from premium quality raw materials fabricated using latest technology. These transformers efficiently convert sufficient and proportionate current which are suitable for the electrical system. Our transformers are very durable and long lasting with robust construction designed to with stand varying pressure and temperature. Clients can avail from us these 11KV VTS transformers at very reasonable range of prices.

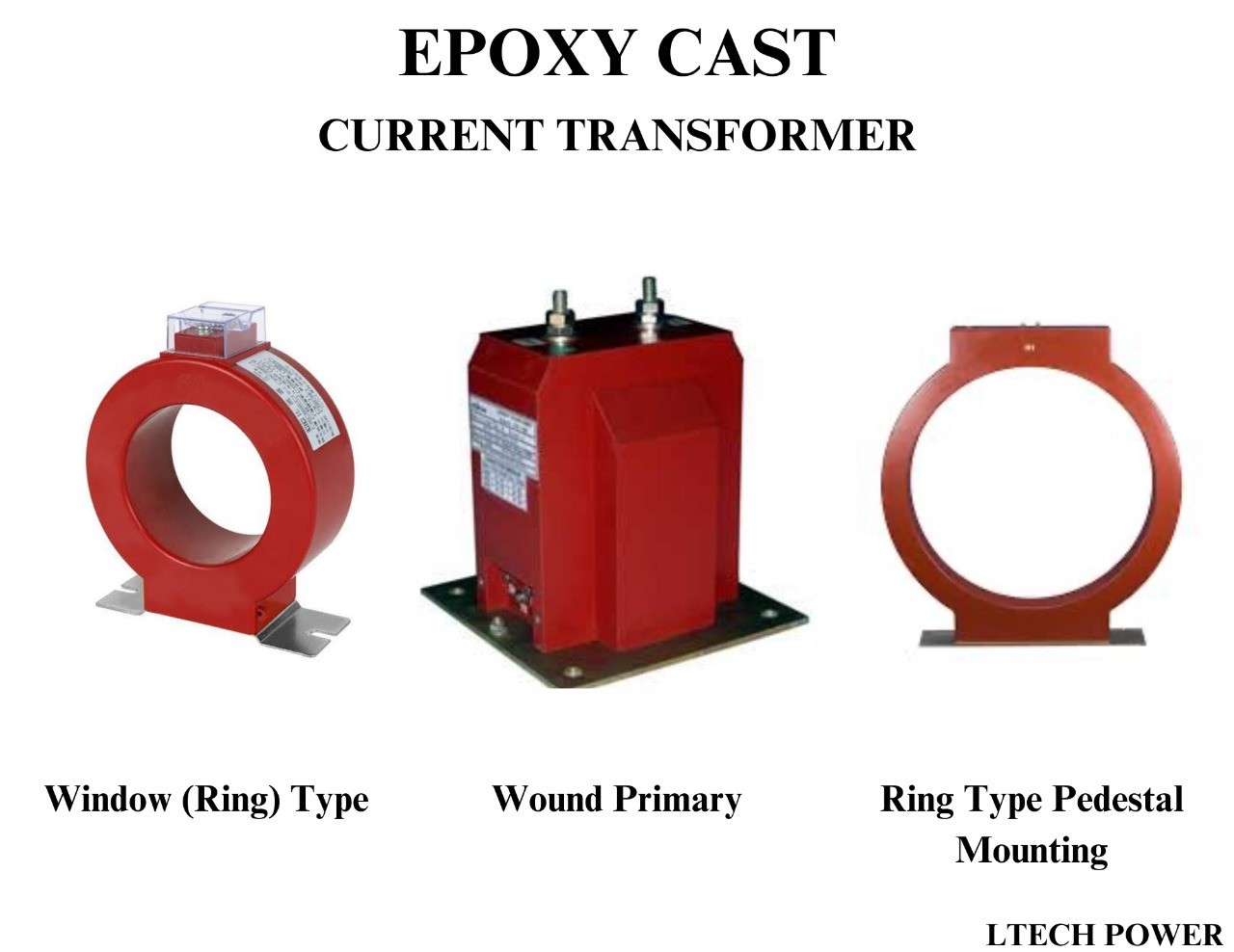

We cover practically all combinations of ratios, burdens, accuracy classes and voltages up to 36Kv and as per IS 16277-2&IEC 61869-2. Current Transformers are normally categorised for 6.6kv or 11kv or 22kv as

(a) Ring Type

(b) Wound Primary.

(c) Ring Type Pedestal Mounting

(d) Window Type Pigtail Connect

(e) Rectangular Type

A Current Transformer where primary winding provided by the user. Busduct Current Transformers also come under this Category.

A Current Transformer in which the primary winding consists of a single turn (Bar Primary) or multi-turn wound primary CTs.

In modern electrical installation, Wound Primary Current Transformers are expected to meet extensive demands by way of high burdens, severe restrictions on dimensions, higher basic insulation levels and higher fault conditions.

Ltech Cast Resin Wound Primary Current Transformers are specially designed and manufactured to meet all these requirements at economical prices.

All technical guidance is also provided to users free of cost and without obligation.

Each high voltage Current Transformer wherever the main insulation is epoxy resin, is essentially cast under vacuum with epoxy resin mixture prepared under vacuum in a sophisticated mixing plant.

Laminations used are of prime quality high grade non-ageing cold rolled grain -oriented steel strip in continuous form.

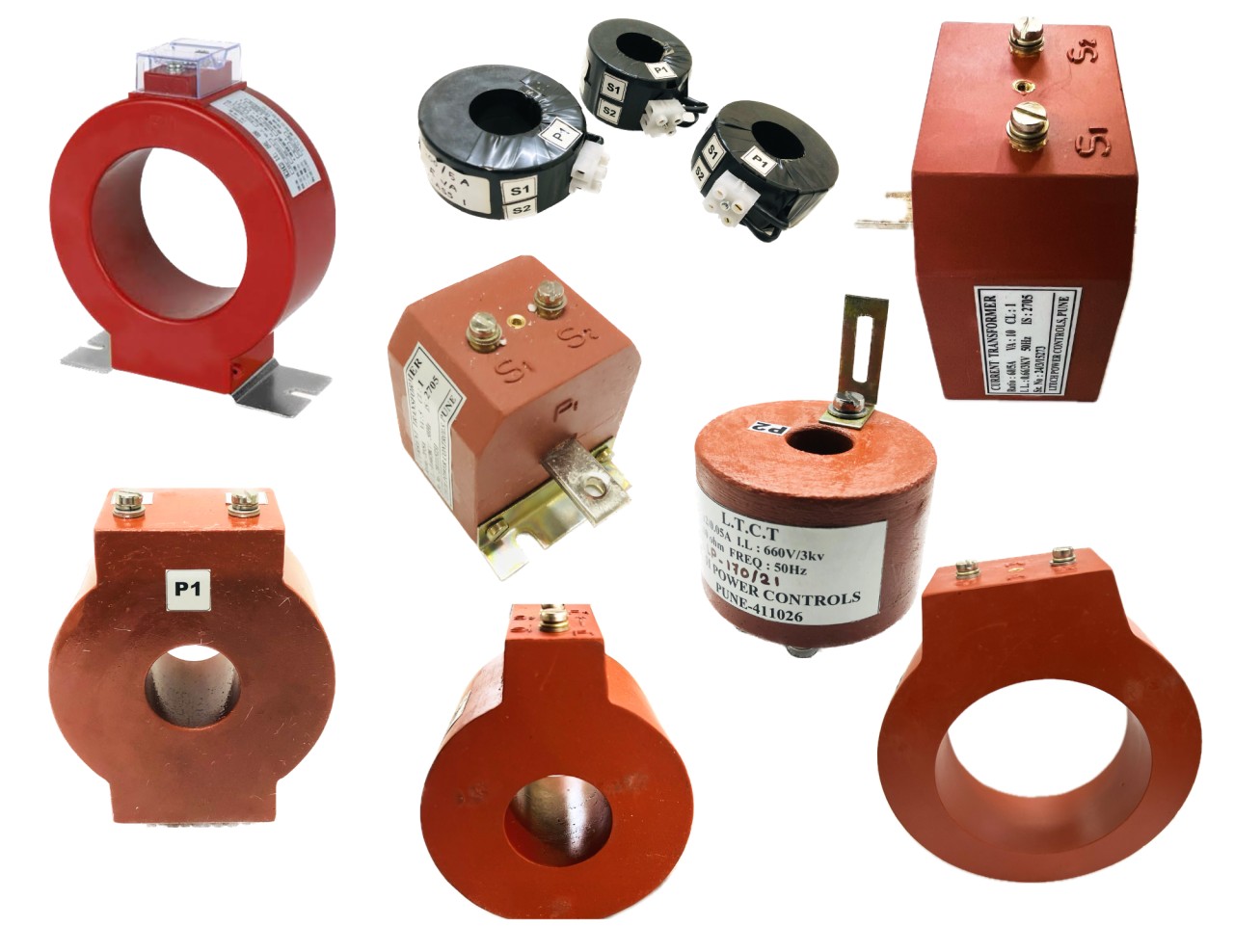

We are providing Low Tension Current and Voltage Transformers with following specifications.

Specifications:

Ring type Construction: >100 Amp to 10000 A

Wound type: < 100 Amp & less

Secondary current: 1 Amp or 5 Amp and as per customer requirement

Accuracy Class: 0.25, 0.55,0.2,0.5, 1 at any VA Burden

Standard IS 16277-2, IEC 61869-2

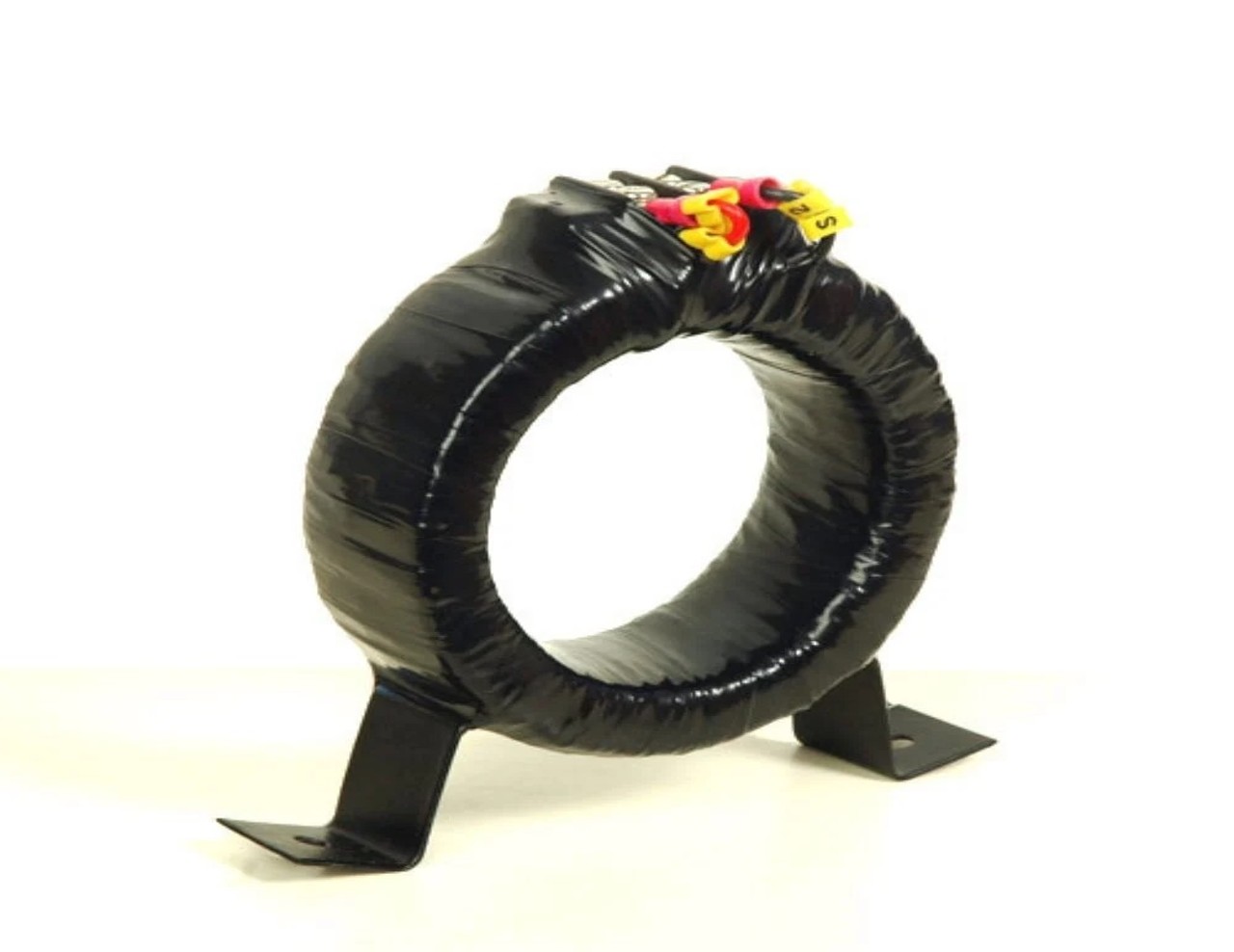

The Core Balance Current Transformer (CBCT), also known as a Zero sequence CT, is used for earth leakage and earth fault protection. In CBCT, the three-core cable or three single cores of a three phase system pass through the inner diameter of the CT. When the system is fault free, no current flows in the secondary of the CBCT. When there is an earth fault, the residual current (Zero Phase sequence current) of the system flows through the secondary of the CBCT and this operates the relay setting.

Specifications:

Accuracy Class 0.2, 0.5, 10

Rated Voltage 3.3 KV, 6.6 KV, 11 KV, 22 KV, 33 KVA

CT Ratio 0/5 To 10000/5 & 10/1 To 10000/1

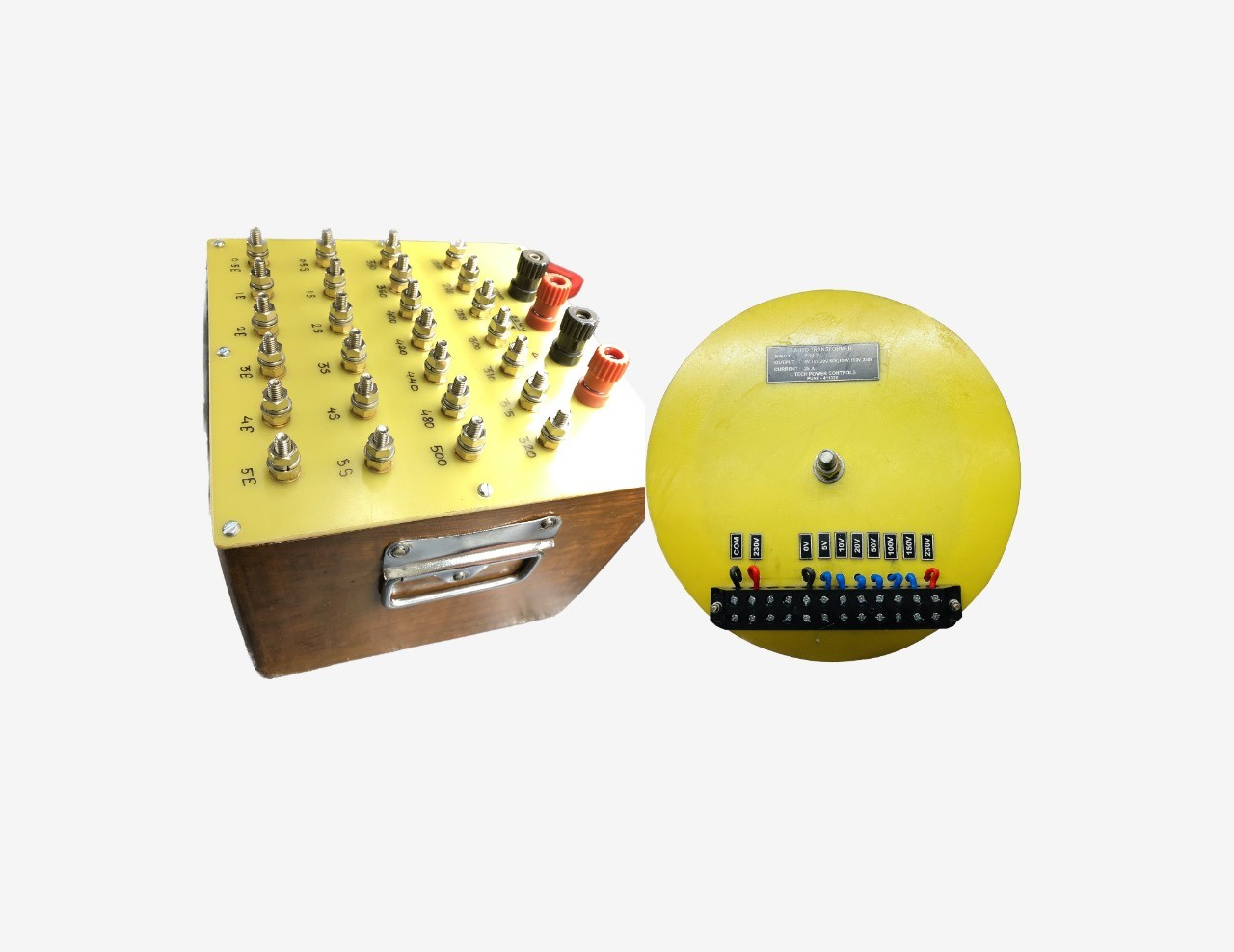

We present user friendly Multi Ratio Precision Voltage Transformer available with two modules 1.1kv - 2.2kv - 3.3kv with 63.5 & 110, volts output & having the 0.1,0.05 class of accuracy. Another model with 3.3 - 6 - 6.6 - 11kv / 63.5 – 110 volts output. Having the 0.1,0.05 class of accuracy.

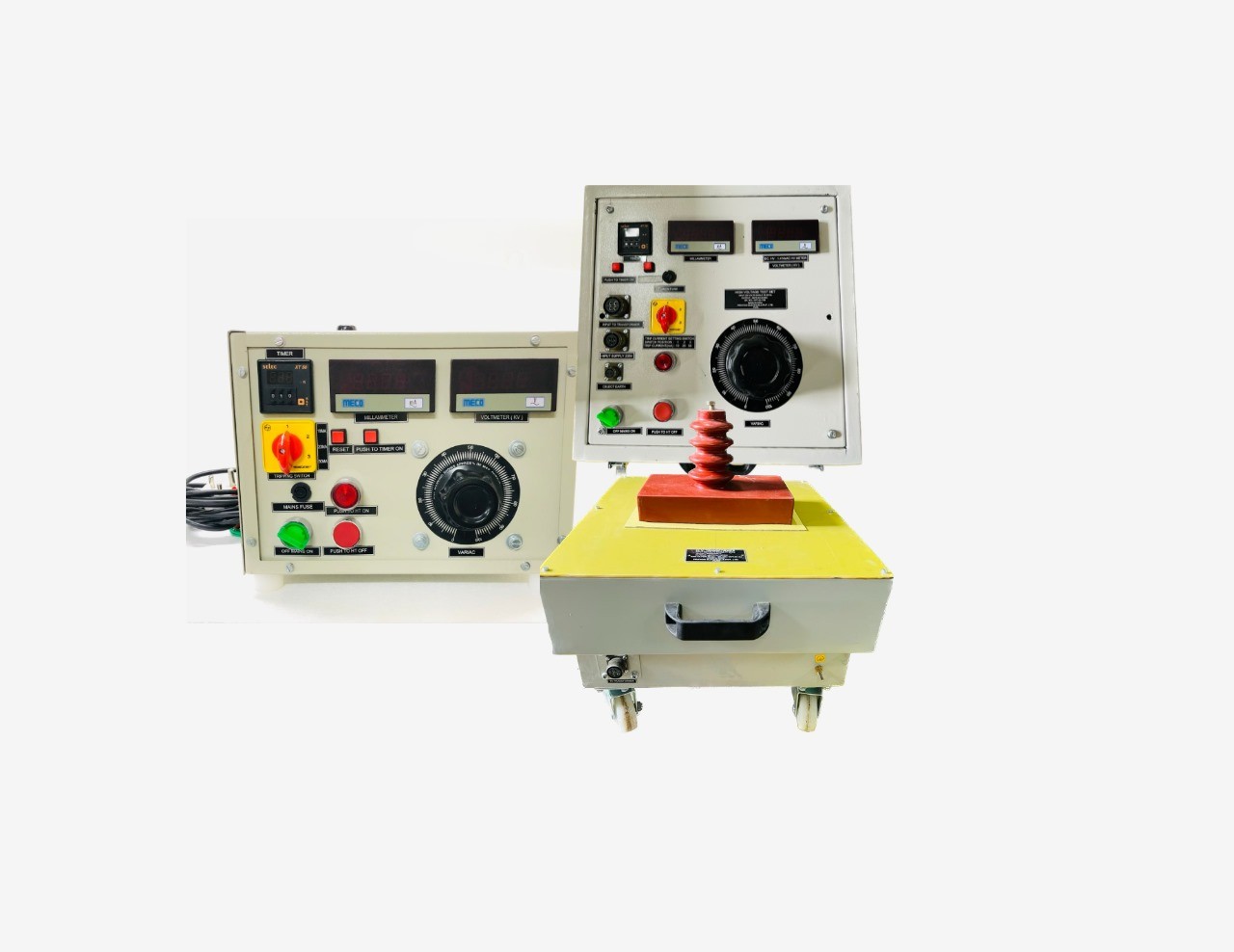

High voltage test sets are available from 5kv to 75kv voltage range. The sets operate from a supply of 230v, single phase, 50HzAC. The sets are designed with all important features of high voltage testers. For more than 5kv, the set is supplied in two separate parts.

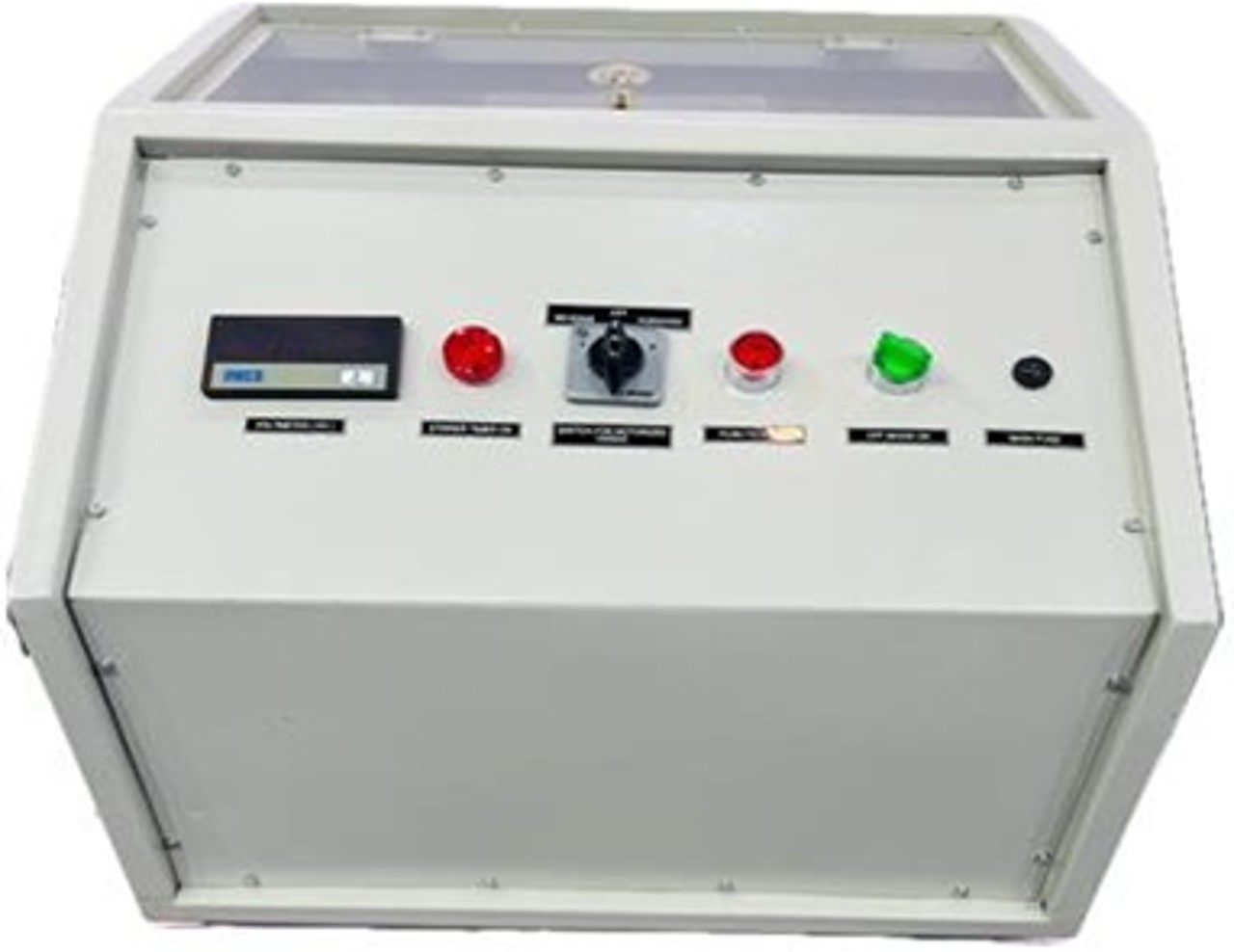

Oil test sets are available for 0-60kv & 0-100kv voltage range in manual motorized with stirrer timer versions. The test sets operate from supply of 230v, single phase,50Hz, A.C. The sets are designed for testing of dielectric 7strength of insulating oils.

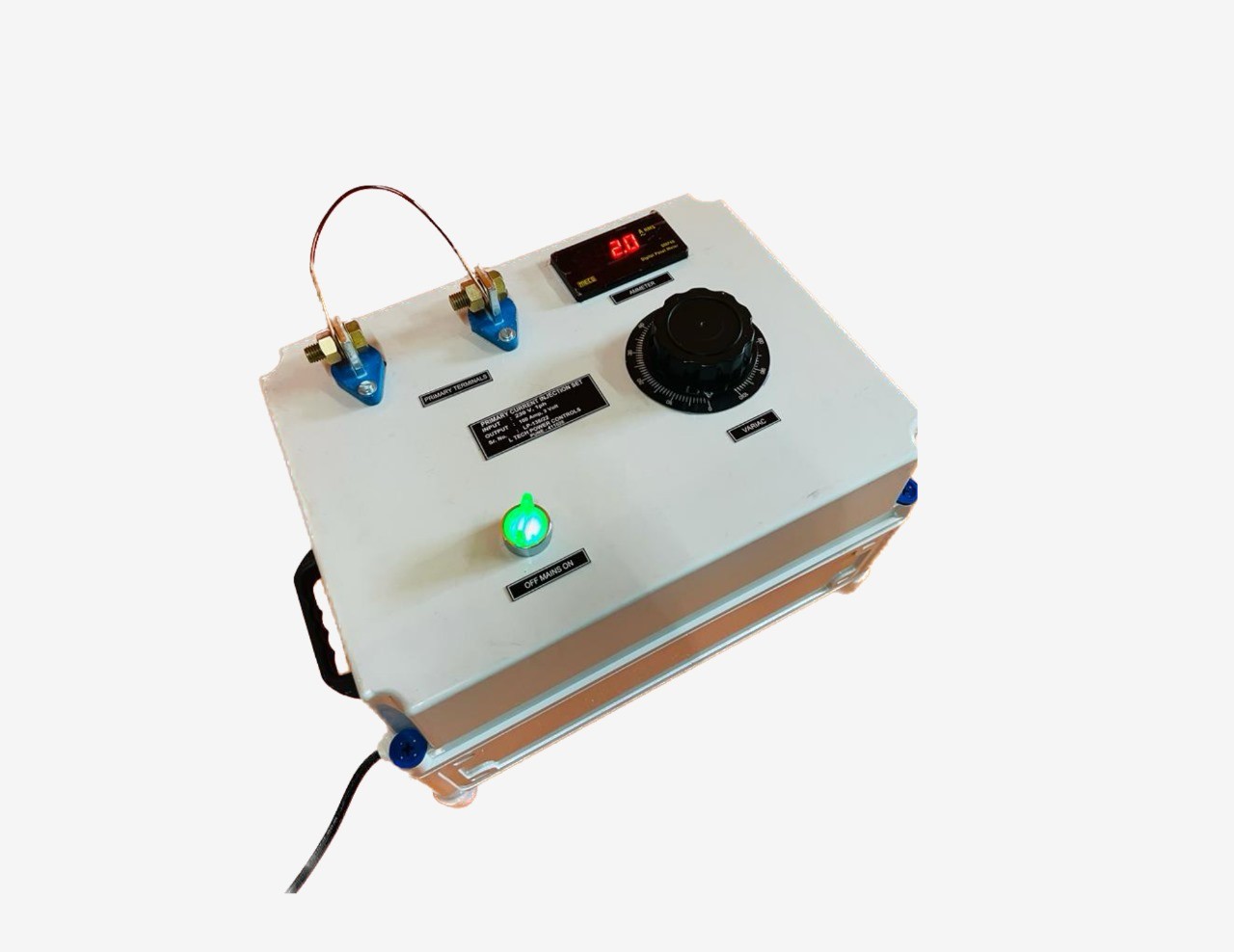

The field-testing and calibration of solid-state trip units can be performed by either primary current injection method or secondary current injection method. Current injection testing is generally associated with high current and high voltage power distribution systems in electricity substations or in a large industrial installations. By injecting a predetermined current into the circuit breaker, it is possible to determine whether the relay will trip at this current and, if so, how long the current needs to flow before the trip is initiated. Primary current injection testing is an invaluable aid to fault-finding.

Properties of Primary Injection Testing

It measure from 0 to 100/3000 Amp.

Rating – 2.5,5,10 KVA

Input to Primary – 230/415 V

Secondary voltage – 5,10 V

Time intensive

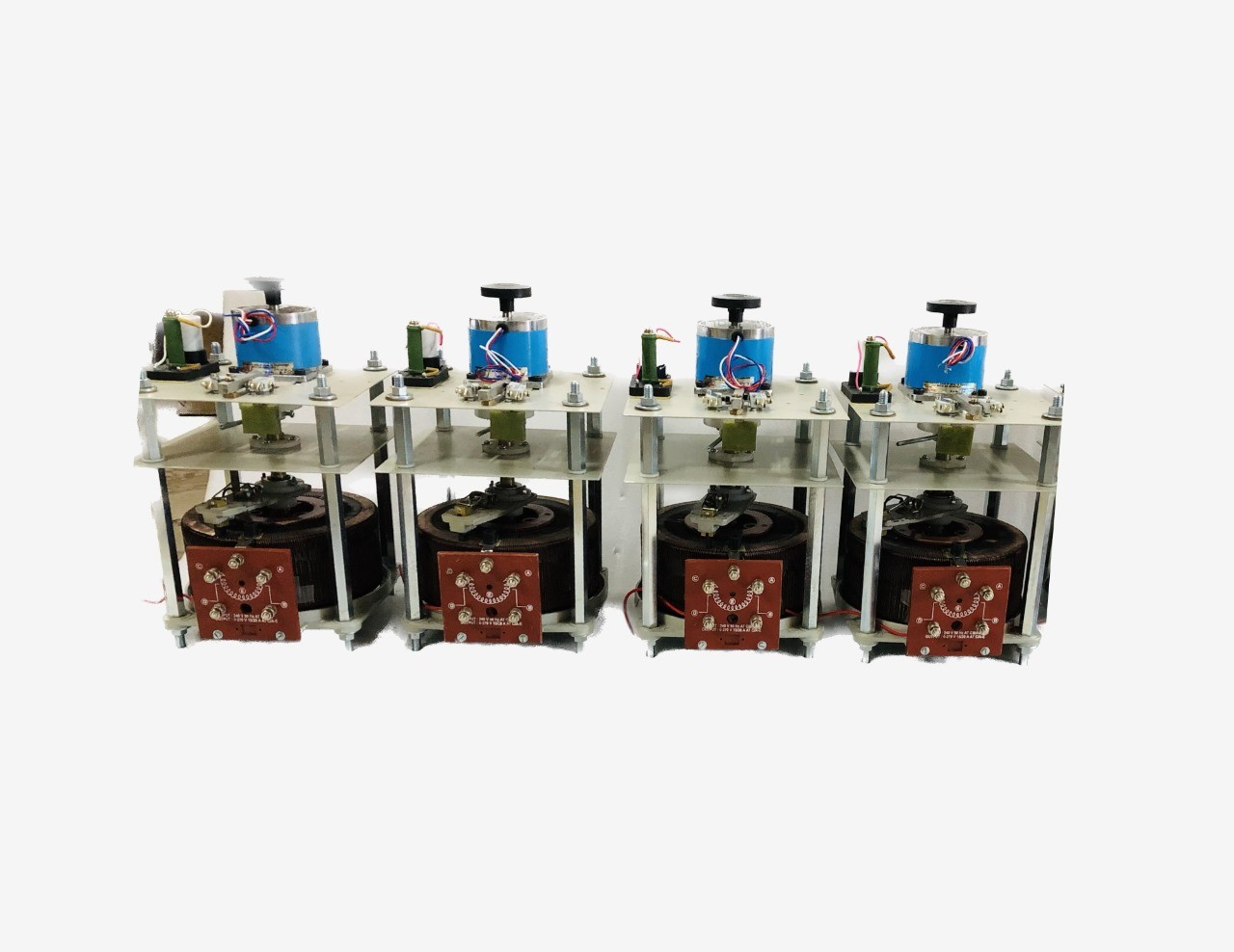

By exposing part of the winding coils of a variac and making the secondary connection through a sliding carbon brush a variac with a near-continuously variable turns ratio can be obtained allowing for wide voltage adjustment in very small increment.

We make 4A,6A,8A,10A,15A,20A,28A type of variac also this type of motorized variac. They have various types of application such as,

1) Use carbon brush for smooth operation.

2) Air/oil cooled.

3) Single/Two/Three phase.

4) Designed for heavy duty continuous use

5) Ideal for EXPORT as it drastically reduces the size & weight of equipment like HV testers, Power supplies etc.

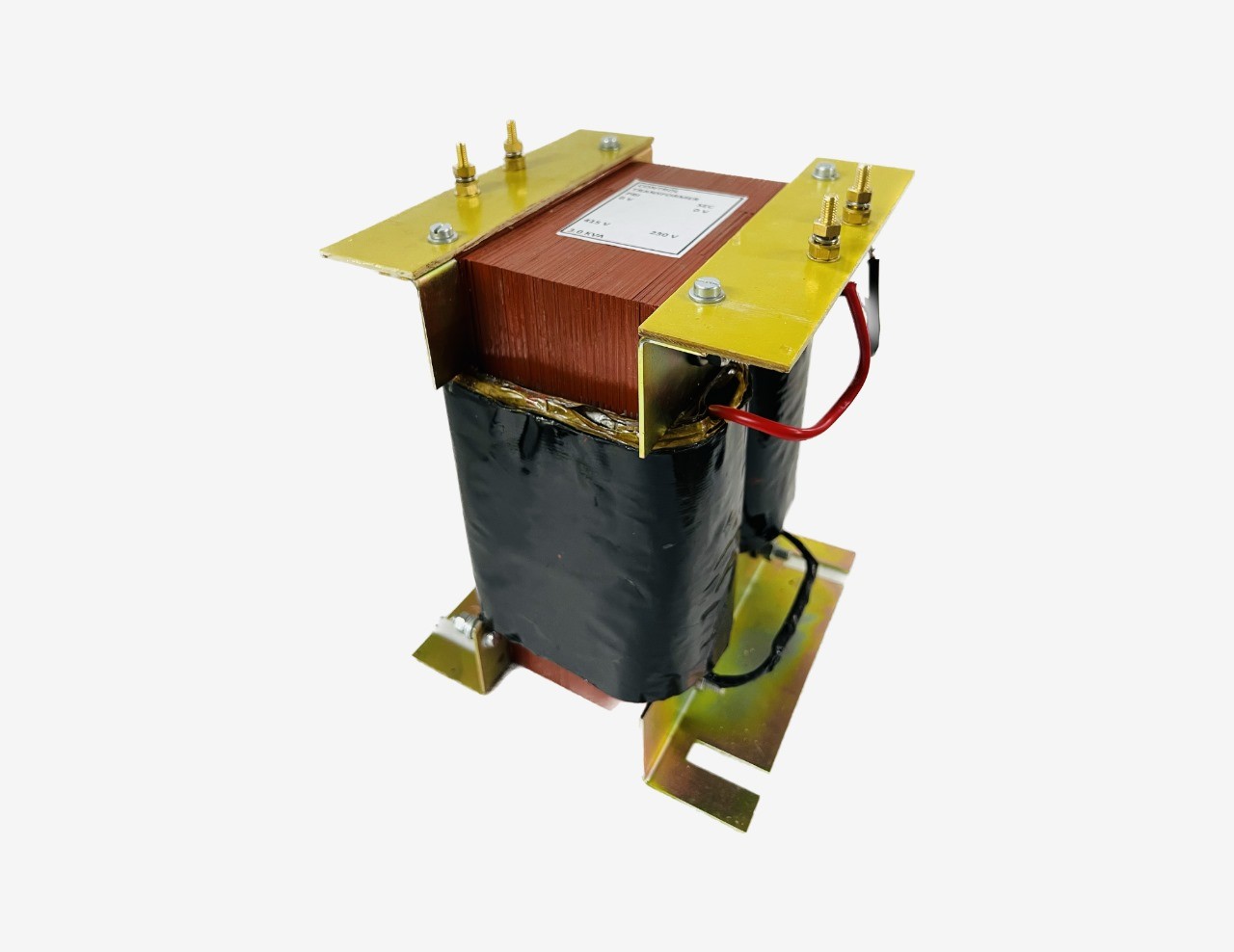

We are manufacturing and supplying Control Transformers to our clients with following specifications.

Specifications:

El Type/ Toroidal type Single Phase/ Three Phase

Rating: 100 VA to 10 KVA

Frequency: 50 / 60 Hz

AC/DC Chokes Ac / Dc, Harmonic Filters

Manufacturing as per customers requirement.

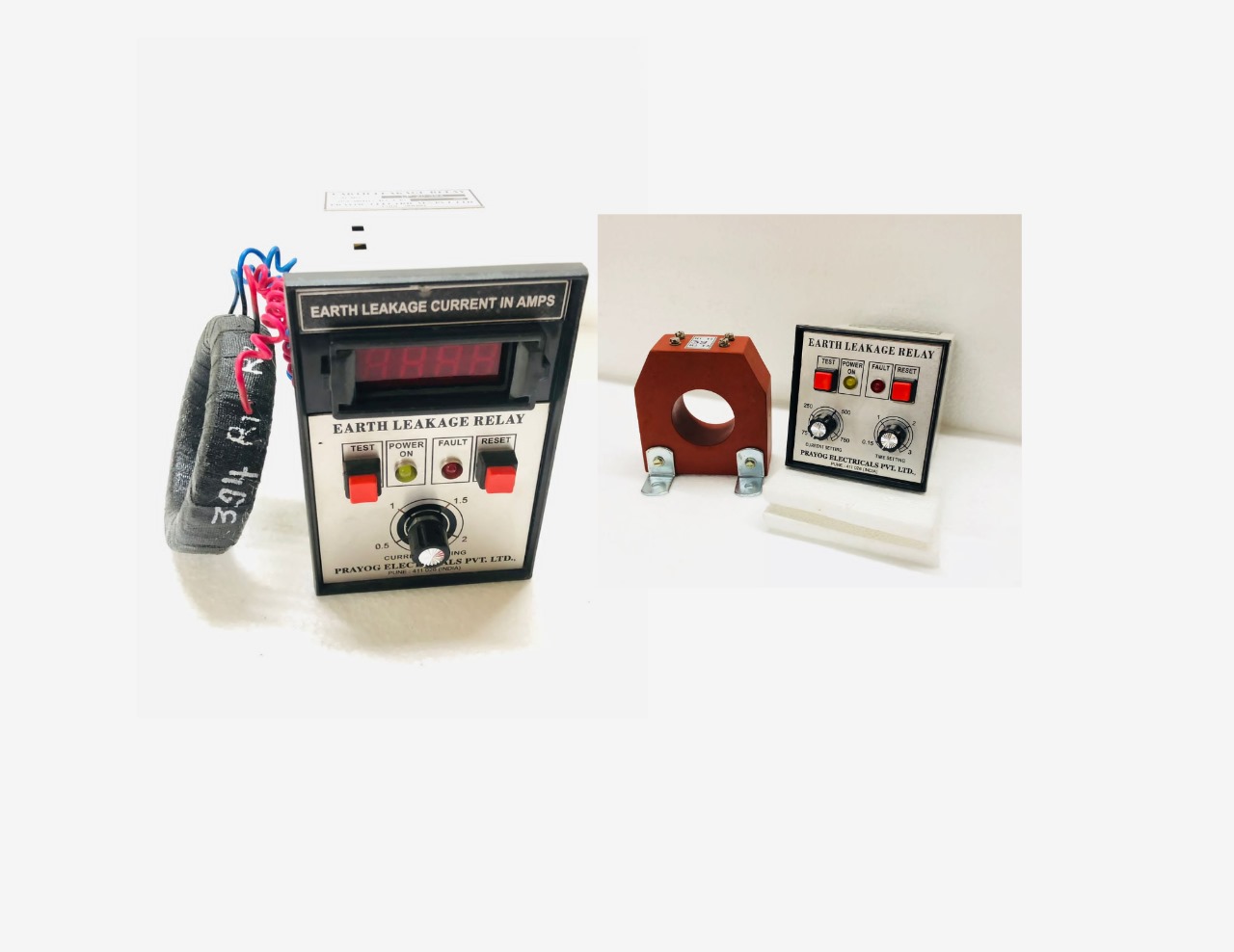

The Earth leakage/ Fault Relays are ideal for use in Sensitive Earth Fault Protection. The fault current sensed by the core balance current Transformer Relays are sensitive, reliable & robust. Relays are available in various range, time delay if required, digital display if required.

Specifications:

Earth leakage Relay

Earth fault Relay

Over Voltage/ Under Voltage Relay

Neutral Displacement Relay

Power Measurement for Motor, Transformer with High Current & Voltage

Test Panel having capacity to run the test on Appliance for reliability test. ON/OFF panel. Available in more facility with multiple loading options.

Specifications:

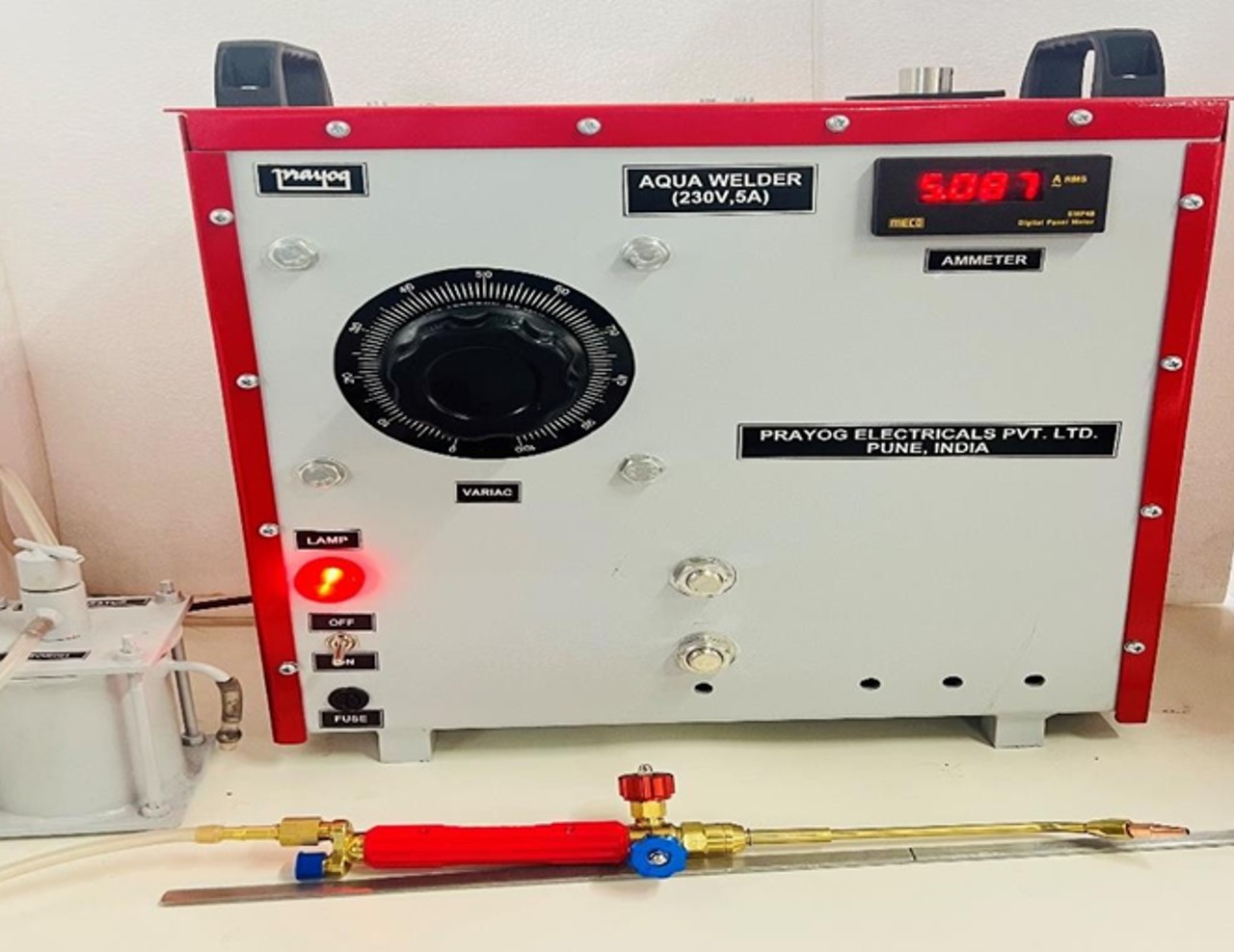

• Portable and compact Oxy-Hydrogen flame welder.

• Non-toxic, low-pressure flame.

• No bulky storage for gas cylinder.

• Safest as total elimination of explosive hazard.

• Environment friendly as water is only by-product.

• Versatile to accommodate various sizes by adjusting flame.

• Cost-effective, the only consumables are electricity, distilled water and methyl.
